Does not come with 3" pipe. Sold separately.

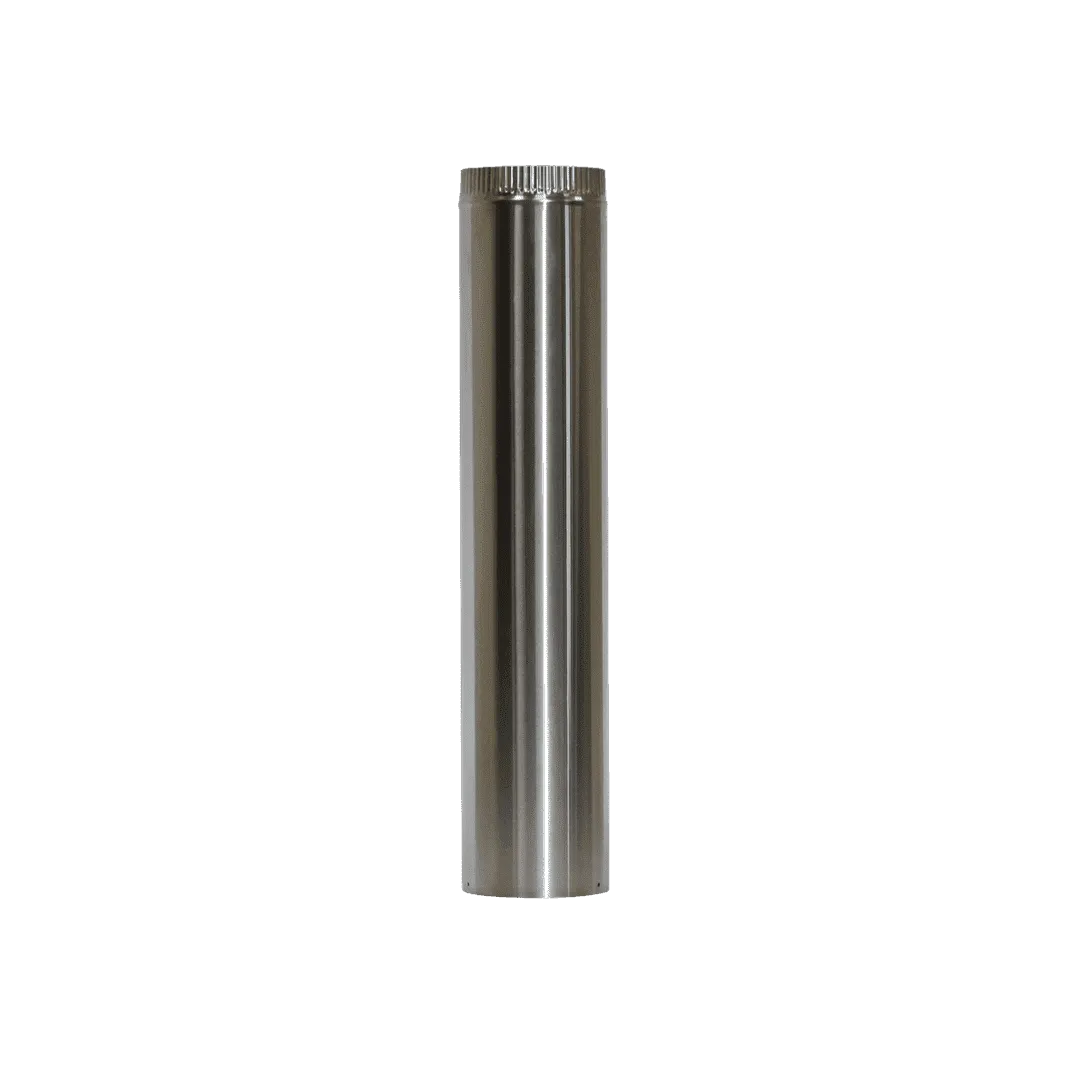

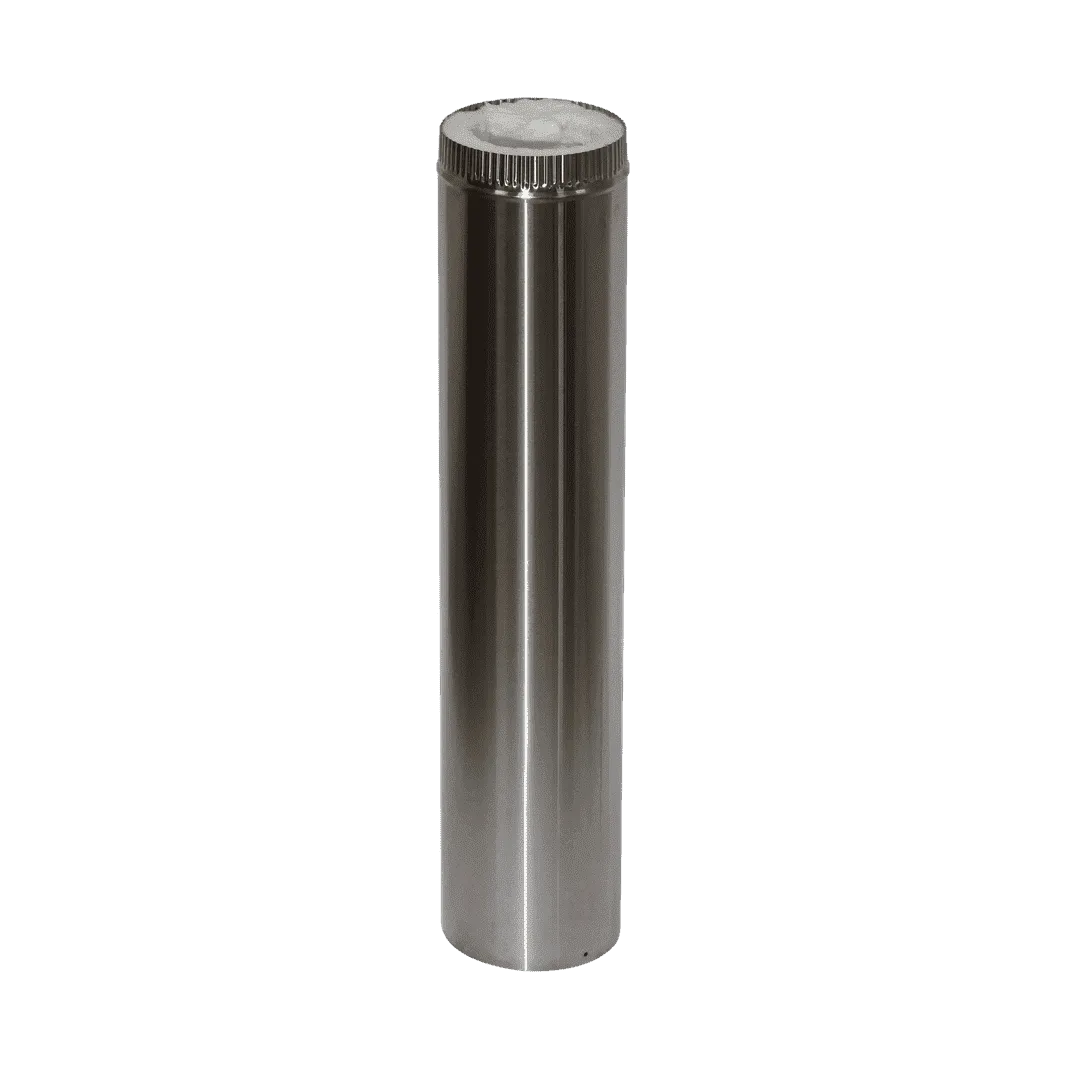

24" (60.96cm) Long 5" (12.7cm) Stainless Steel Insulated Pipe. CB-5024-SS. Fits on both of our stoves. The and the Only needed for non certified installtions.
Features
- Used to pass through the ceiling and roof. Also keeping the double wall from cooling.
- passes through this pipe and goes all the way to where the pipe needs to terminate.
Dimensions

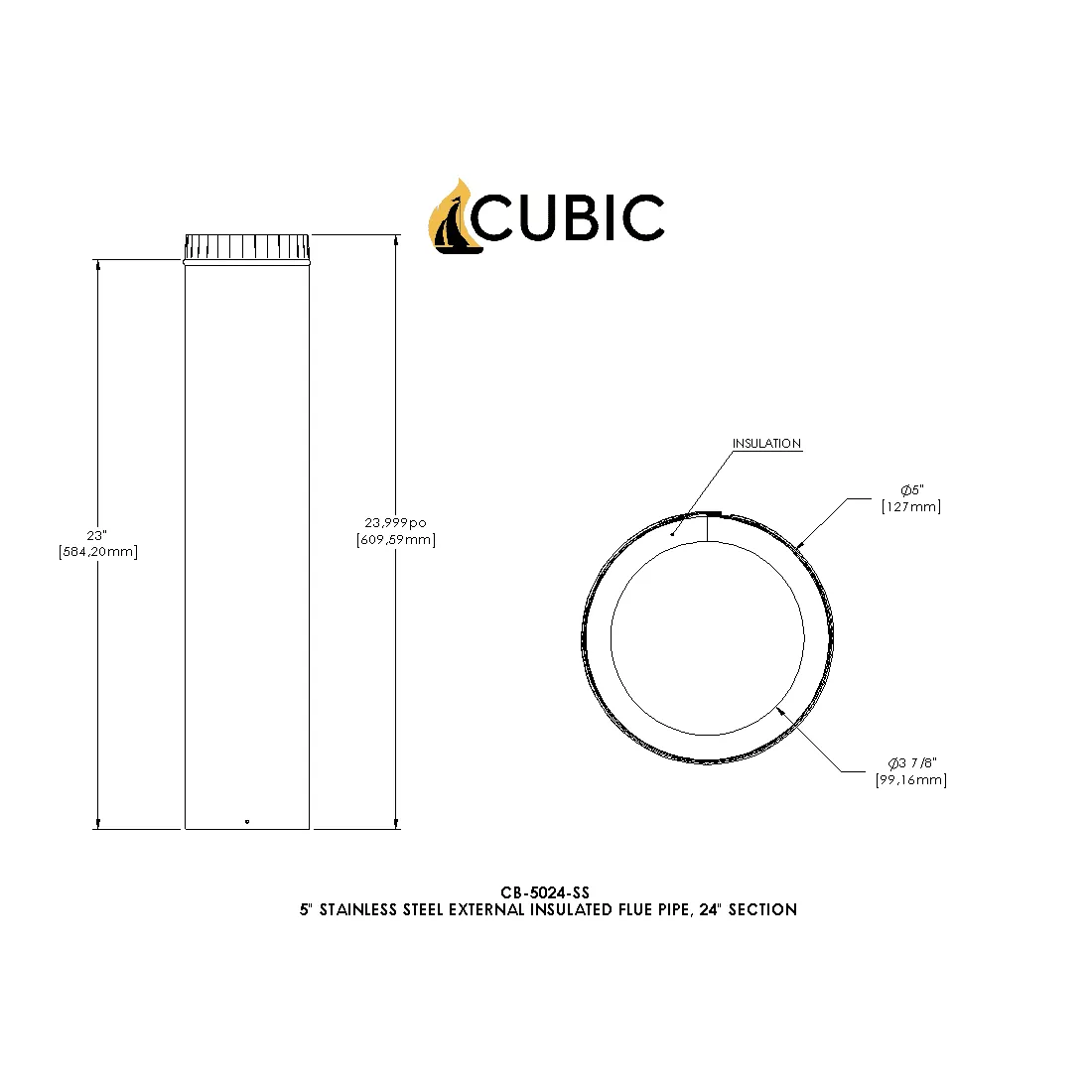

- 24” (60.96cm) long with 23.25" (59.05cm) of usable flue pipe 3/4" (1.90 cm) lost on the connection.
- 5"(12.7cm) Outside pipe diameter
| 1 Section | provides 23" ( 58.42 cm ) of usable flue pipe / 1.91 Feet ( 58.21 cm ) |
| 2 Sections | provides 46.5" ( 118.11 cm ) of usable flue pipe / 3.875 Feet ( 9.84 cm ) |
| 3 Sections | provides 69.75" ( 177.16 cm ) of usable flue pipe / 5.81 Feet ( 14.75 cm ) |
| 4 Sections | provides 93" ( 236.22 cm ) of usable flue pipe / 7.75 feet ( 236.22 cm ) |
| 5 Sections | provides 116.25" ( 295.27 cm ) of usable flue pipe / 9.68 feet ( 295.04 cm ) |
Specifics

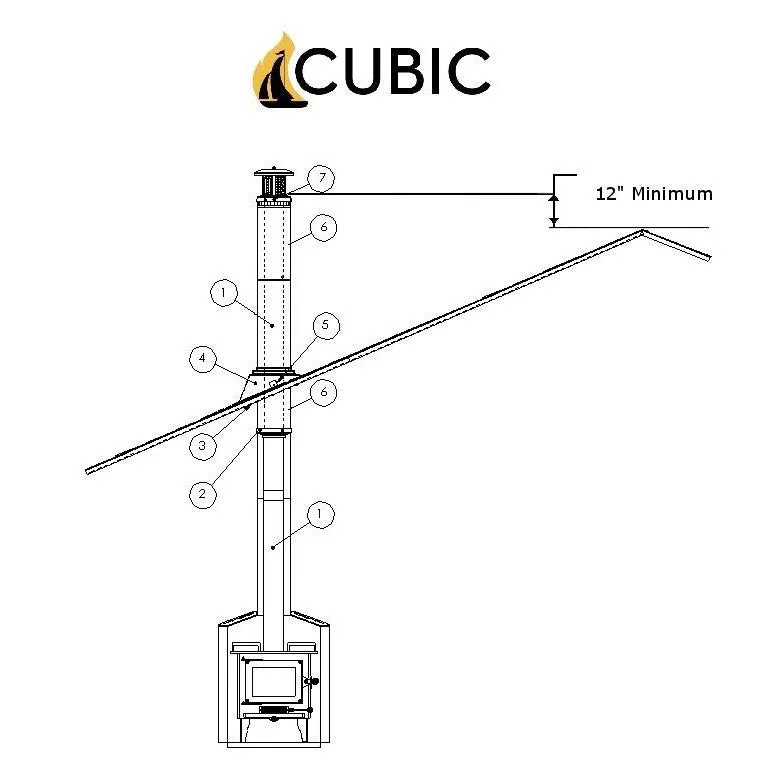

- This pipe is designed to cover the distance from 2" ( 5.08 cm ) below the ceiling to the 1 foot ( 30.48 cm ) mark past the roof's highest point. It is insulated and made of stainless steel, and does not carry any flue gases. The 3" flue pipe carries the gases and runs through the 5" pipe.
- A 1" air space between the pipe, ceiling and roof is necessary. When in a flat position, a 7" circular hole must be made. If angled, the hole must be an oval shape to ensure an even 1" air space around the pipe.
- To properly cut the pipe to the desired length, it is recommended to use an angle grinder with a cutting disc.
- A flue pipe brace is necessary when the exterior length exceeds 2 feet.
- Does NOT come with
Material

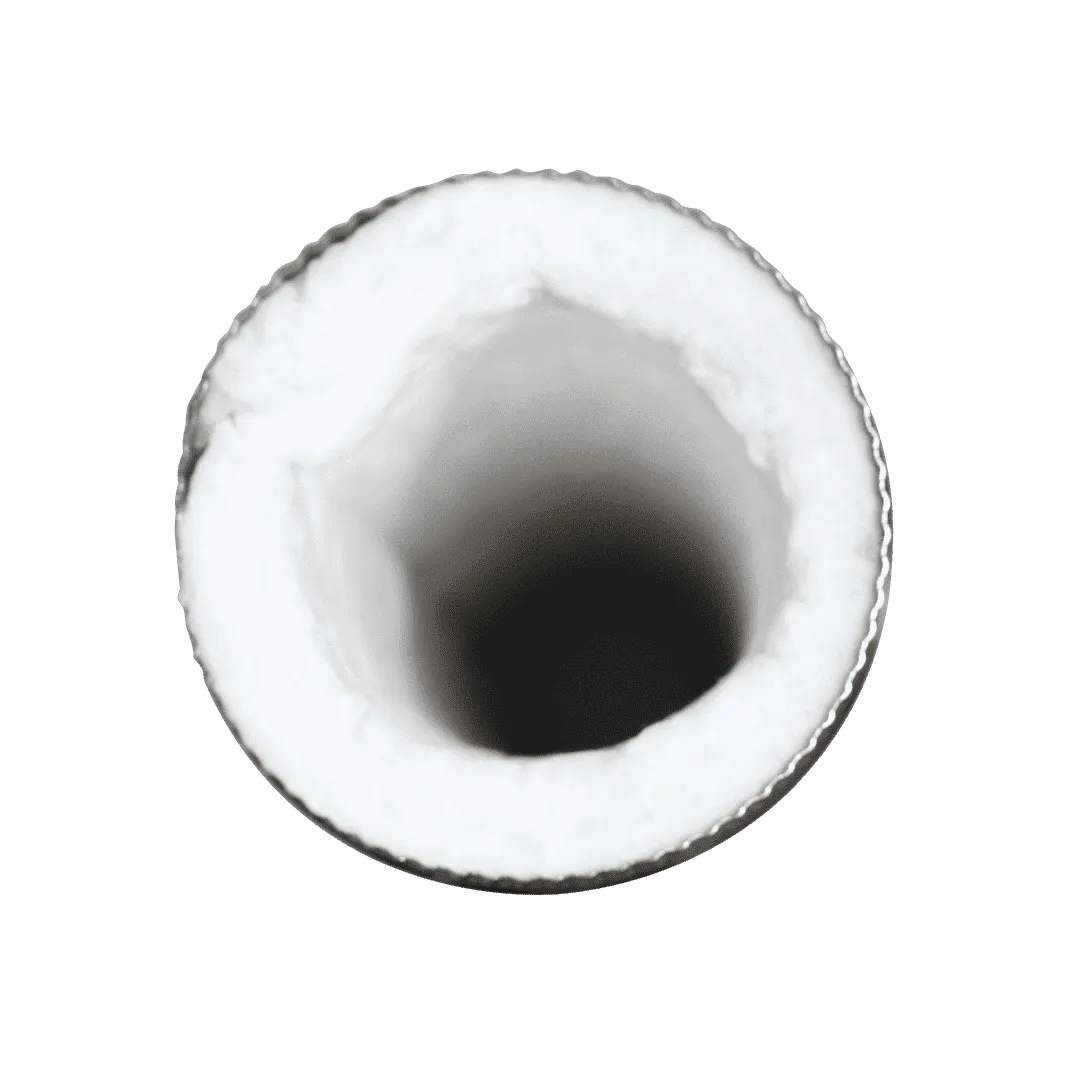

- 1" Thick Ceramic Wool Blanket Insulation.
- Stainless steel construction.
