An in-depth and versatile semi-modular mono synth, the Circadia was developed by a team of heralded synth wizards to be a stand-alone instrument capable of both nuanced sounds and seriously, weird and wonderful sounds that with a flick of a slide (accidental or not) or the removal of a patch cable - soulful low end can turn into oscillating mess.

Featuring:

• Performance-oriented,  "East and West" Coast modern analog semi-modular format
• 101 x jacks (plus 10 on rear), 34 x sliders, 16 x knobs, 28 x switches, 36 x LEDs and 5 buttons
• 2 x precision analogue VCOs  (VCOA has TZ-FM with INDEX VCA, PWM and SOFT/HARD sync options)
• Eurorack compatible signal levels
• Liquid-sounding, cascaded 4-Pole multimode filter with extensive modulation options and unique modes
• ENV A: Versatile ADSR / AHDSR envelope generator with HOLD function and dynamic level/time control
• ENV B: Complex, beat syncable,  multimode function generator with Envelope, LFO, and Burst generator modes
• Triple analog LFO with linked, divisible rates and CV control
• Comprehensive and precise MIDI to CV and GATE implementation with additional synced/tapped LFO and CLOCK outputs
• Six channel waveform mixer with asymmetric soft clipping
• Extensive utility section that includes Noise, S&H, Envelope Follower, Attenuverter, Buff Mults,  Summer,  Inverters,  and connection to a digital potentiometer based guitar pedal expression control interface.
• Analogue ring modulator
• Parallel “West Coast” style wavefolding ability
• Auxiliary VCA and 4-Pole Diode Ladder VCF combination for additional dynamics
• External effect send/return loop with line or guitar pedal levels and wet/dry mix
• Global output drive circuit with bypassable asymmetric soft clipping

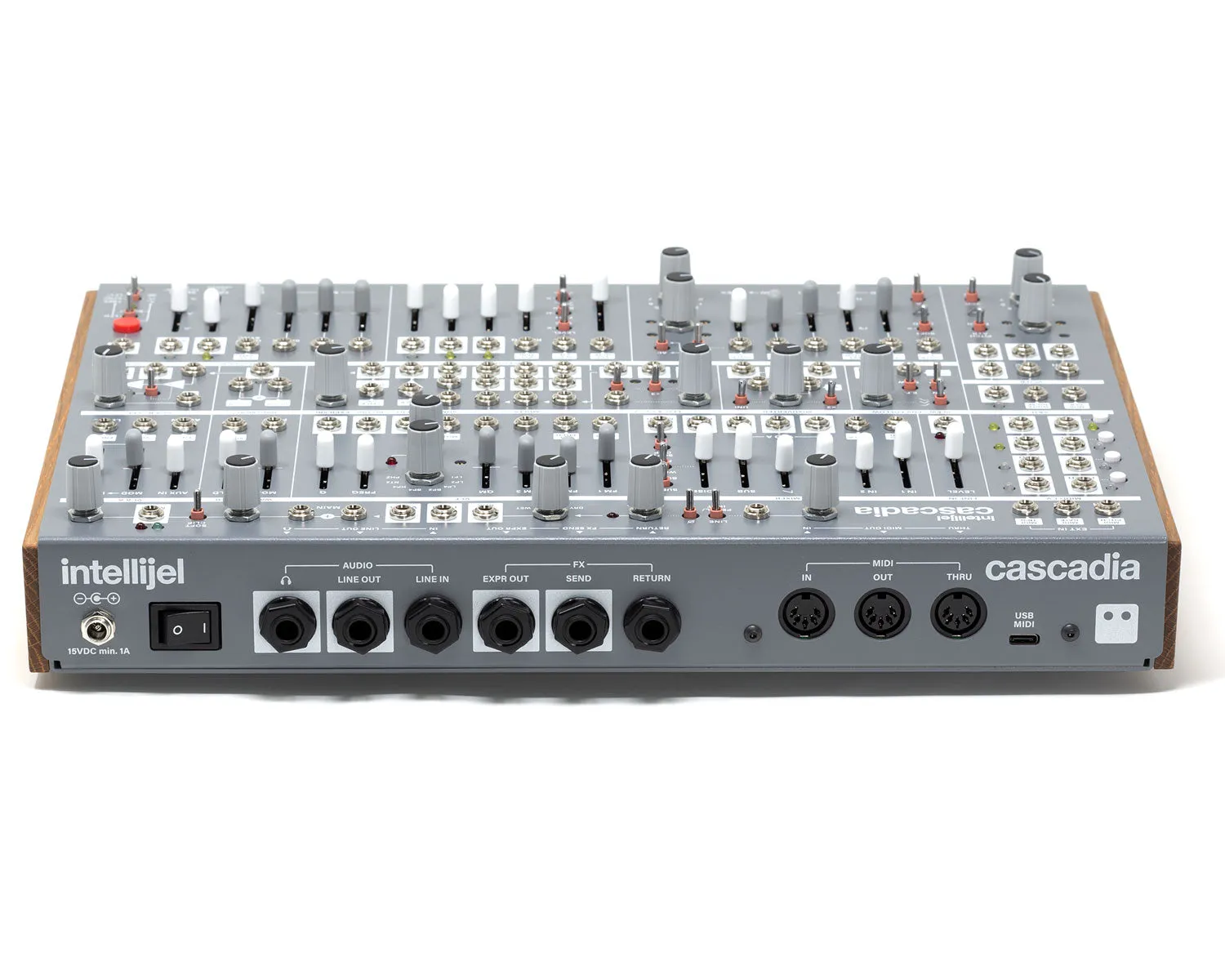

• Balanced 1/4" line inputs and outputs plus a dedicated headphone output

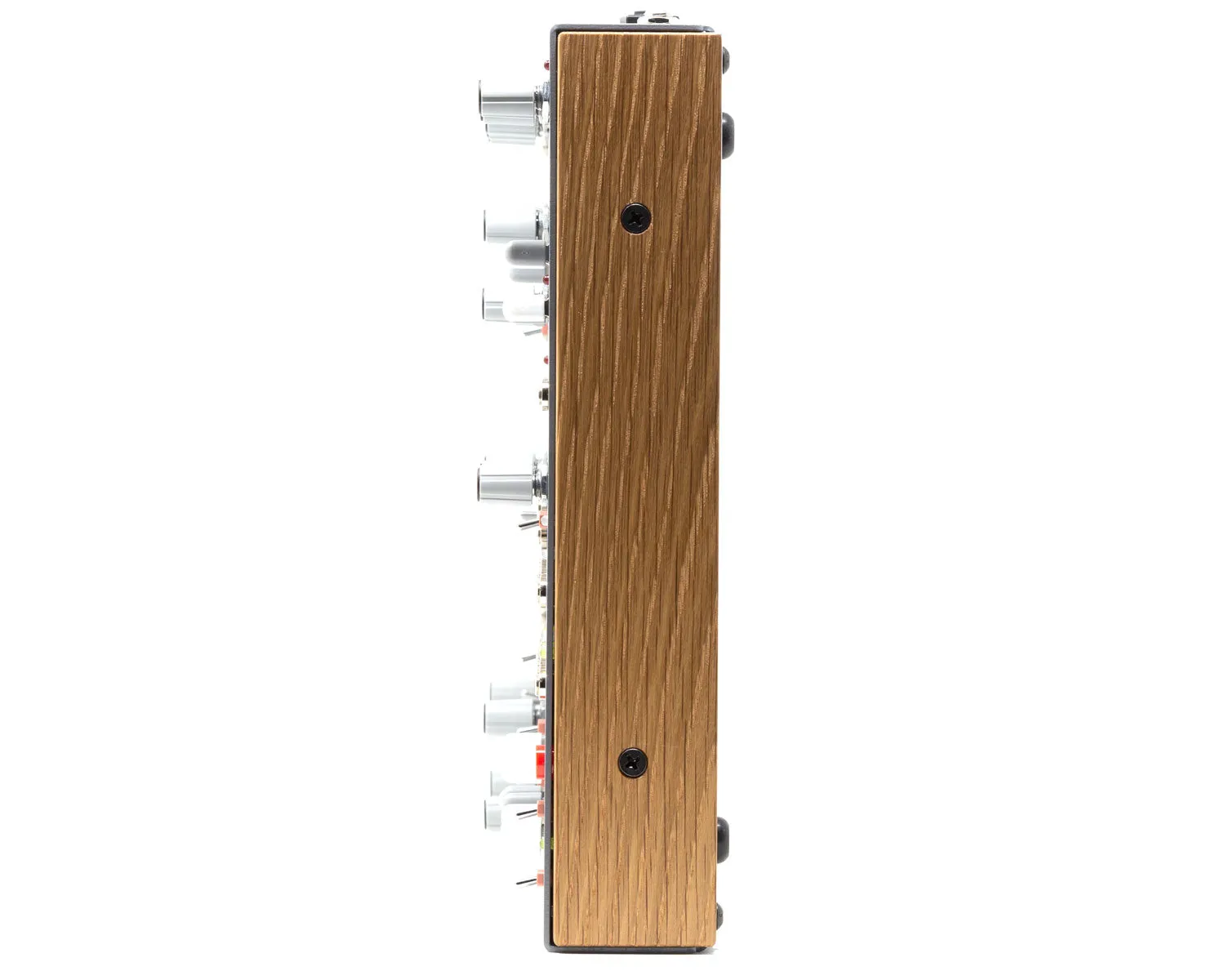

• Very Compact (fits in a backpack) and durable powder-coated enclosure with bespoke oak wood sides.

Includes 14 assorted patch cables, USB-A to USB-C cable & an international power supply.

Video:

Product Specs

• Item Number: 27048
• Make: Intellijel
• Model: Cascadia - Grey
• Condition: Brand New
• Finish: Dark Grey
• Categories: keyboards-and-synths ⇒ digital-synths
• Function: Synth Voice
• Made In: Canada
• MPN: CASCADIA-DRKGRY
• Modular Grid: Pedals ⓘ ＋
• Dimensions*: 348 mm wide 246 mm high
• Power*: 1000 mA / 15 V DC / Positive Center

* User contributed details
